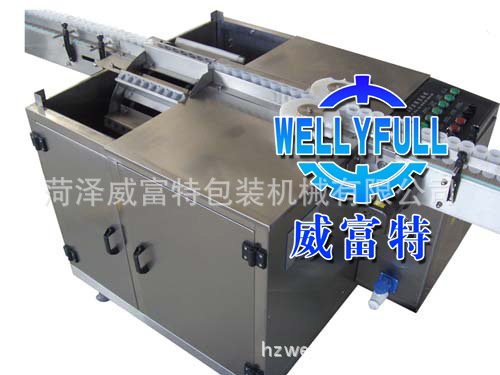

GHR-B  Glass bottle  Rolling Bottle Rinser
Description:
  GHR-B rolling washer is the product that our company , researched and produced according to the principle in existence of similar washer in home and abroad . it suit to round bottles and irregular bottles with shoulder , washed by couple of water can be drawed by purified air . optional ultrasonic device to technical requirements . unique structure, adopting machine mould to fix bottle to wash alone , low breakage ratio of bottle . reasonable washing process , high clean washed bottles. Low consumption of the quantity of waster. It is easy to operate, convenient to maintain. Meet the requirements of GMP.
Main technical parameters:
1、Production capacity： 40-120bpm（according to bottle size）
2、Bottle size: 2-1000ml plastic＆glass bottles
3、Power supply : 380V/50HZ
4、Power consumed: 1.2kw
5、The pressure of pure water and injecting water: 0.4Mpa
6、The quantity of pure water and injecting water consrmed : 0.7m³/h
7、The quantity of injecting water consumed : 0.7m³/h
8、 The pressure of clean compressed air : 0.3-0.4Mpa
9、The quantity of clean compressed air consrmed : 40 m³/h
10、Single machine noise : ≤70dB
11、Weight :approx. 600kg
12 、Overall dimension ( L x W x H ) : 1450 X 1200 X 1500 mm
